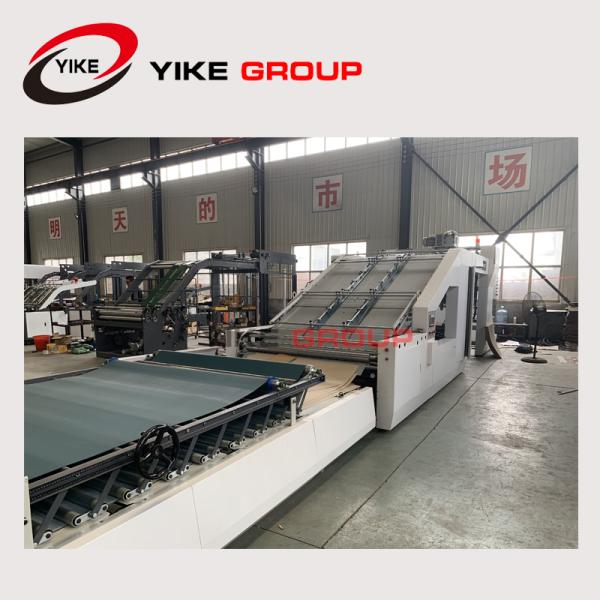

Corrugated Carton Machinery 150m/Min Flute Laminator Machine

Name: Corrugated Carton Machinery 150mMin Flute Laminator Machine
Brand: YIKE GROUP
Price: 40 USD

Brand Name : YIKE GROUP

Model Number : YK-1300

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Set for Corrugated Carton Machinery Flute Laminator Machine

Price : $40,000.00 /set

Payment Terms : L/C, T/T

Supply Ability : 50 Sets per Month

Delivery Time : 30 days after deposit

Packaging Details : Plastic Film, FCL

Automatic grade : Automatic Flute Laminator Machine

After-sales service provided : Engineers available to service machinery overseas

Type : Flute Laminating Machine

Condition : New Automatic 5 Ply Flute Laminator Machine

Product name : Flute Corruagated Cardboard Laminating Machine

Name : Automatic Flute Carton Board Laminate Machine with Auto Delivery

Function : Gluing Corrugated Carton Board

Speed : 150m/min laminating machine

Application : Food,Medical,Beverage

Packaging type : Plastic Film

Contact Now

Corrugated Carton Machinery Flute Laminator Machine

Machine structure

Face paper conveying section adopts advanced four suckings and four delivering feeder, with the help of high-pressure vacuum pump it can feed the face paper 200-500gsm efficiently. The pre-loading structure reduces the face paper loading time greatly.
Position displaying the handwheel on the face paper pile loading section makes the loading action more accurate and more convenient for the bottom paper loading at the same time. Limited swi
tch fixed on face paper loading section makes the moving up action more accurate.
Conveying belt, pressing roller and automatic chasing lay all do help to the face paper delivery. Pressing roller adopts the specialized roller which is used on the print machine, it can deliver both thick and thin paper effectively. Anti-curl structure helps to deliver face paper at the same time.
Both bottom paper feeding sections adopt vacuum sucking belts with high strength and high friction allowing the non-stop feeding. Rotating paper supporter equipped on this section makes it possible to feed the long sheet.
Knurled roller on the bottom-feeding part makes sure the stable running when the machine in a high speed.

Specification

Name	Requirement	Requirement	Requirement
Model	YK-1300	YK-1450	YK-1600
Max. Paper size(W*L)	1300*1300 mm	1450*1300 mm	1600*1300 mm
Min. Paper size(W*L)	500*500 mm		600*600 mm
Face paper thickness	250-500 g/m2(standard paper board)
Flatness requirements on face paper	Curve height should be less than 0.2 times the paper thickness
Requirements on film	Film ends should be less than 2 times the paper thickness
Bottom paper	A,B,C,E,F flute
Flatness requirements on the bottom paper	Within 15/1000 mm
Corrugated paper deflection	Curve height should be less than 0.2 times of paper thickness, the deflection should be less than 2times of flute height
Requirements on the height of corrugated flute	If there is a difference between the two flutes, the difference should be within 1/20 of the corrugated height
Diagonal requirement	Less than 3/1000 mm
Size requirement on face paper and bottom paper	The size of face paper should be 8 mm larger than that of the bottom paper
Laminate layers	Face paper+corrugated paper=3 layers or Face paper+corrugated paper+corrugated paper=5 layers(total thickness less than 10 mm)
Precision	±1.5mm(according to the paper quality)
Speed	100 m/m(theoretical value )	90 m/m(theoretical value)
Production efficiency	0-6000 sheets/h	0-5000 sheets/h
Height of face paper pile	1600 mm
Face paper table capacity	1500 KG
Height of bottom paper pile	400 mm
Total Power	33 KW	34 KW
Voltage	Three-phase 380V
Efficient pressing length	6000 mm
Conveying height	250 mm
Adhesive medium	Corn starch glue
Collecting table size(W*L)	1300*1300 mm	1450*1300 mm	1600*1300 mm
Collecting table capacity	300 KG
Dimension(LWH)	2200022002500 mm(Subject to machine)	2200024002500 mm(Subject to machine)	2200025502500 mm(Subject to machine)
Machine Weight	About 7.5 T(Subject to machine)	About 7.8 T(Subject to machine)	About 8 T(Subject to machine)
